Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts

Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts

105Ah Lifepo4 Lithium Battery

72V Lithium Ion Battery Pack

48V/51.2V Electric Golf Cart Battery

Luogo di origine:

Hunan, Cina

Marca:

PINSHENG ENERGY

Numero di modello:

PE-W22112202

Contattaci
Chiedi un preventivo
Dettagli del prodotto
Dimensione della batteria:
18650
Tipo di batteria:
Lifepo4/batteria al litio
Voltaggio:
48V/51.2V
BMS:
BMS intelligente
Capacità:
105Ah o su misura
Materiale anodo:
NCM
Tasso di imposizione:
1c
Tasso di scarico:
2C
Energia elettrica:
5000 Wh
Tensione nominale:
51.2v
Capacità nominale:
105Ah
Energia della batteria:
5376Wh
Resistenza interna:
≤ 8MΩ
Vita ciclo:
≥6000 cicli 80%DOD
Auto -scarico:
<3>
Termini di pagamento e di spedizione
Quantità di ordine minimo
2
Prezzo
$439-485
Descrizione del prodotto
Custom LiFePO4 Lithium Ion Battery Pack
72V 105Ah Electric Golf Cart Battery

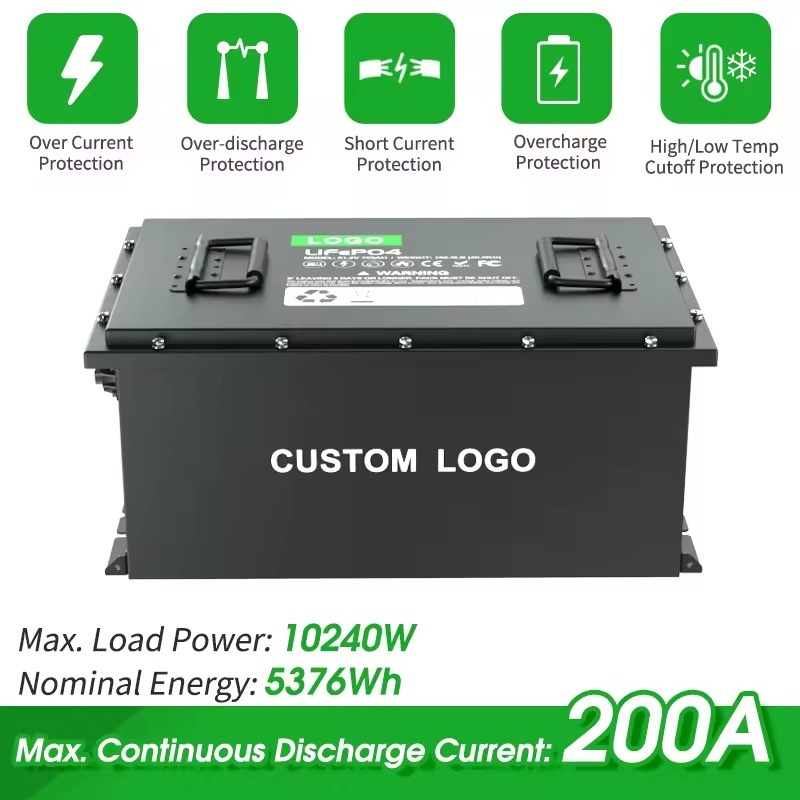

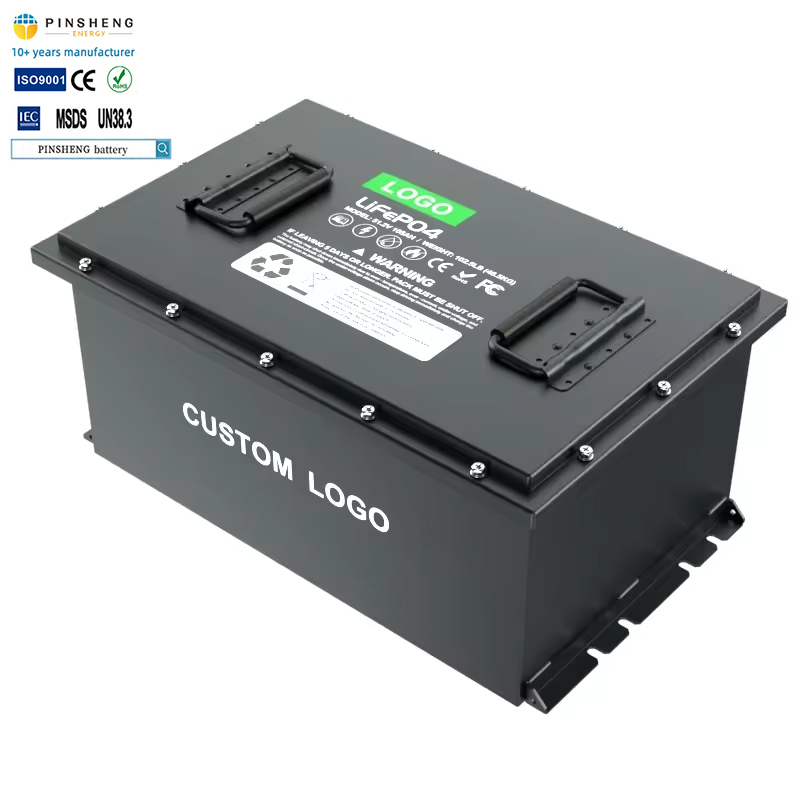

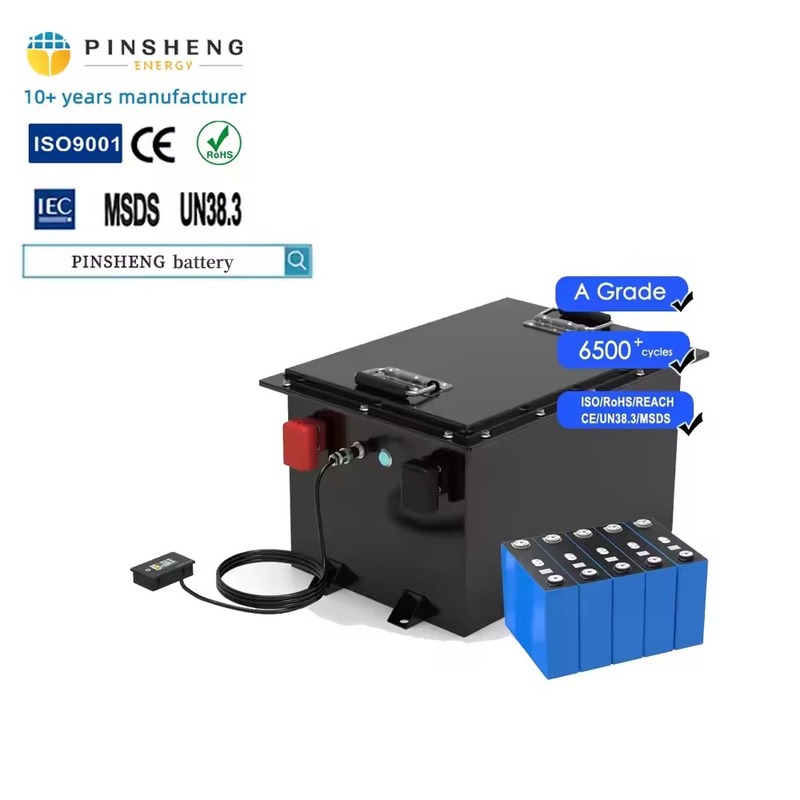

Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts 0 Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts 1 Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts 2
Key Specifications
Electrical Characteristics Model Number PE-101
Nominal voltage 51.2V
Nominal capacity 105Ah
Battery energy 5376Wh
Internal resistance ≤ 8mΩ
Cycle life ≥6000 cycles (80% DOD)
Self discharge per month <3%
Charging Specifications
Charge cut off voltage 58.4V
Charge mode CC/CV (constant current/constant voltage)
Standard charge current 20A
Max charge current 50A
Discharge Specifications
Discharge cut off voltage 40V
Continuous discharge current 200A
Environmental Specifications
Charge temperature 0℃ to 45℃ (32F to 113F) @60±25% RH
Discharge temperature -5℃ to 60℃ @60±25% RH
Storage temperature 0℃ to 40℃ (32F to 104F) @60±25% RH
Mechanical Specifications
Case Metal case
Dimension 470×334×247mm (L×W×H)
Terminal M10
Weight 44.60kg
Function Custom LCD, App BT
Color Black
BMS Protection Features
  • Over-charge protection
  • Over-discharge protection
  • Over-current protection
  • Short circuit protection
  • Over-temperature protection
  • Balance functions
Certifications
  • CE
  • MSDS
  • UN38.3

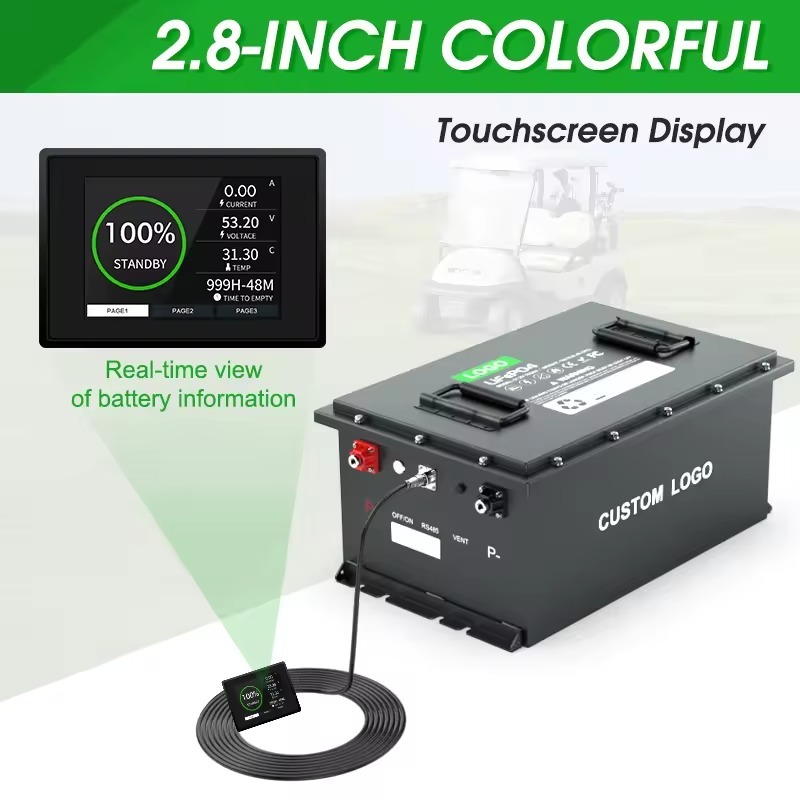

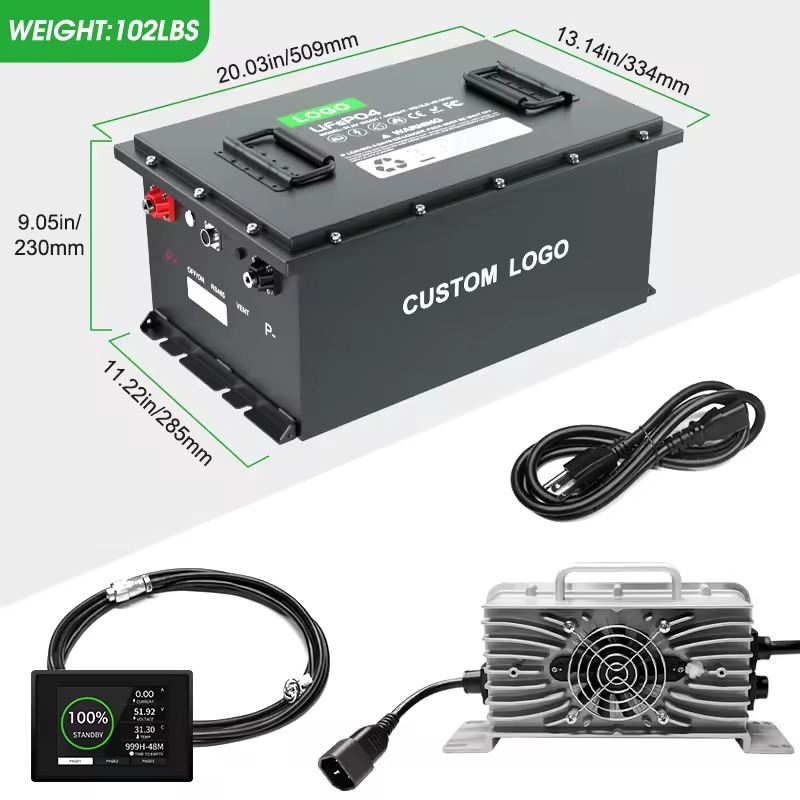

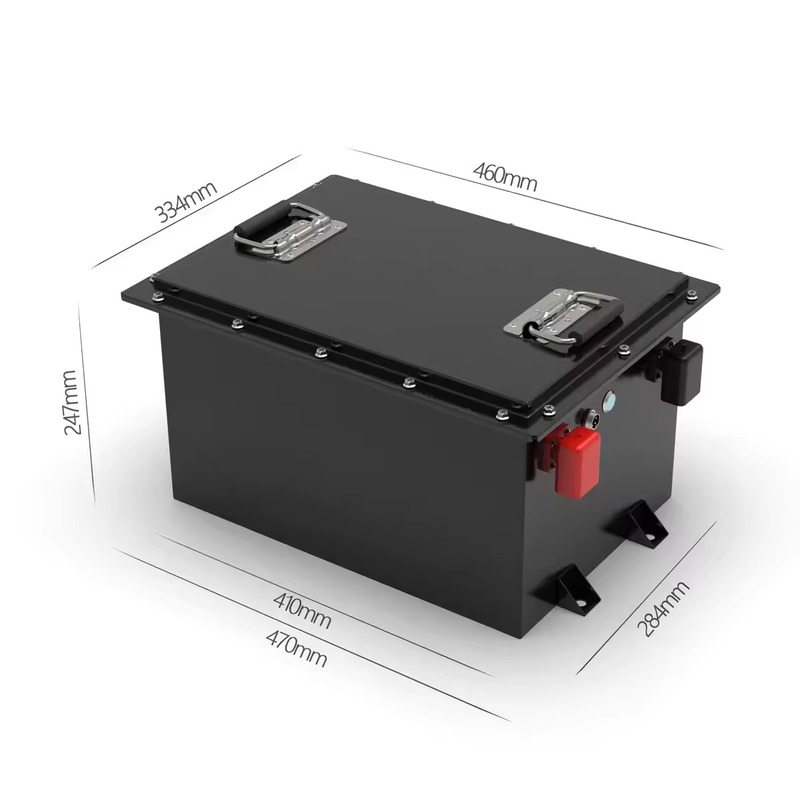

Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts 3 Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts 4 Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts 5
About Pinsheng Energy

Pinsheng Energy is a High-Tech Enterprise with R&D located in Changsha City, Hunan Province, near Guangzhou. With a 4,000 square meter workshop and 121 employees, we specialize in developing and producing lithium batteries and battery system integration.

After years of development and research, we have established a complete industry chain from research and production to sales. Our lithium batteries feature longer cycle life, higher security, greater reliability, and superior energy density.

Our products are widely used in energy storage systems (off-grid wind & solar energy storage, telecommunication systems, UPS) and power systems (electric motorcycles, bikes, scooters, tricycles, golf carts, forklifts, and electric vehicles).

Pinsheng Energy maintains a strict quality guarantee system to ensure high-quality products and has earned a strong reputation both in China and abroad. We prioritize customer needs and continuously improve our product quality and services, dedicated to becoming a top OEM & ODM lithium battery manufacturer worldwide.

Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts 6 Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts 7 Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts 8
